Fundamentals of Convective Heat Transfer

Week-11 (Live Session)

Durga Prasad Pydi

2025-10-04

Reynolds Averaged Navier Stokes Equations

Continuity equation: \frac{ \partial \bar{u} }{ \partial x } +\frac{ \partial \bar{v} }{ \partial y }+\frac{ \partial \bar{w} }{ \partial z } =0

x-momentum equation:

\rho\left( \frac{ \partial \bar{u} }{ \partial t } +\bar{u} \frac{ \partial \bar{u} }{ \partial x } +\bar{v} \frac{ \partial \bar{u} }{ \partial y } +\bar{w} \frac{ \partial \bar{u} }{ \partial z } \right)=-\frac{ \partial \bar{p} }{ \partial x } +\mu\left( \frac{ \partial^{2} \bar{u} }{ \partial x^{2} }+\frac{ \partial^{2} \bar{u} }{ \partial y^{2} } +\frac{ \partial^{2}\bar{u} }{ \partial z^{2} } \right)-\rho \frac{ \partial \overline{u'u'} }{ \partial x }-\rho \frac{ \partial \overline{u'v'} }{ \partial y }-\rho \frac{ \partial \overline{u'w'} }{ \partial z }

y-momentum equation:

\rho\left( \frac{ \partial \bar{v} }{ \partial t } +\bar{u} \frac{ \partial \bar{v} }{ \partial x } +\bar{v} \frac{ \partial \bar{v} }{ \partial y } +\bar{w} \frac{ \partial \bar{v} }{ \partial z } \right)=-\frac{ \partial \bar{p} }{ \partial y } +\mu\left( \frac{ \partial^{2} \bar{v} }{ \partial x^{2} }+\frac{ \partial^{2} \bar{v} }{ \partial y^{2} } +\frac{ \partial^{2}\bar{v} }{ \partial z^{2} } \right)-\rho \frac{ \partial \overline{v'u'} }{ \partial x }-\rho \frac{ \partial \overline{v'v'} }{ \partial y }-\rho \frac{ \partial \overline{v'w'} }{ \partial z }

x-momentum equation:

\rho\left( \frac{ \partial \bar{w} }{ \partial t } +\bar{u} \frac{ \partial \bar{w} }{ \partial x } +\bar{v} \frac{ \partial \bar{w} }{ \partial y } +\bar{w} \frac{ \partial \bar{w} }{ \partial z } \right)=-\frac{ \partial \bar{p} }{ \partial z } +\mu\left( \frac{ \partial^{2} \bar{w} }{ \partial x^{2} }+\frac{ \partial^{2} \bar{w} }{ \partial y^{2} } +\frac{ \partial^{2}\bar{w} }{ \partial z^{2} } \right)-\rho \frac{ \partial \overline{w'u'} }{ \partial x }-\rho \frac{ \partial \overline{w'v'} }{ \partial y }-\rho \frac{ \partial \overline{w'w'} }{ \partial z }

energy equation:

\rho c_{p}\left( \frac{ \partial \bar{T} }{ \partial t } +\bar{u} \frac{ \partial \bar{T} }{ \partial x } +\bar{v} \frac{ \partial \bar{T} }{ \partial y } +\bar{w} \frac{ \partial \bar{T} }{ \partial z } \right)=k \left( \frac{ \partial^{2}\bar{T} }{ \partial x^{2} } +\frac{ \partial^{2}\bar{T} }{ \partial y^{2} } +\frac{ \partial^{2}\bar{T} }{ \partial z^{2} } \right)-\rho c_{p} \frac{ \partial \overline{u'T'} }{ \partial x } -\rho c_{p} \frac{ \partial \overline{v'T'} }{ \partial y } -\rho c_{p} \frac{ \partial \overline{w'T'} }{ \partial z }

Reynolds Stress

Reynolds or turbulent stress is given by

\tau=-\rho \begin{bmatrix} \overline{u'u'} & \overline{u'v'} & \overline{u'w'} \\ \overline{u'v'} & \overline{v'v'} & \overline{v'w'} \\ \overline{u'w'} & \overline{v'w'} & \overline{w'w'} \end{bmatrix}

Boussinesq eddy viscosity approximation:

-\rho \overline{u_{i}'u_{j}'}=-\frac{2}{3}\rho k\delta_{ij}+\mu_{t}\left( \frac{ \partial \bar{u_{i}} }{ \partial x_{j} } + \frac{ \partial \bar{u_{j}} }{ \partial x_{i} } \right)

where k is the turbulent kinetic energy and \mu_{t} is the eddy viscosity

k = \frac{1}{2}(\overline{u'u'}+\overline{v'v'}+\overline{w'w'})

Shear stress is thus given by

\tau_{ij}=-\bar{p}_{eff}\delta_{ij}+\mu_{eff}\left( \frac{ \partial \bar{u_{i}} }{ \partial x_{j} } +\frac{ \partial \bar{u_{j}} }{ \partial x_{i} } \right)

where \bar{p}_{eff}=\bar{p}+\frac{2}{3}\rho k and \mu_{eff}=\mu+\mu_{t}

Turbulent Intensity

The relative magnitude of the root mean square value of the fluctuating components with respect to the time averaged mean velocity

I = \frac{\sqrt{ \frac{1}{3}(\overline{u'}^{2}+\overline{v'}^{2}+\overline{w'}^{2} })}{|\vec{U}|}

Case Range
High turbulence 5\leq I\leq 20
Medium turbulence 1\leq I \leq 5
Low turbulence I<1
For laminar flow I=0

Turbulent Boundary Layer Equations

\frac{ \partial \bar{u} }{ \partial x } + \frac{ \partial \bar{v} }{ \partial y } =0

\bar{u} \frac{ \partial \bar{u} }{ \partial x } + \bar{v} \frac{ \partial \bar{u} }{ \partial y } = \frac{ \partial }{ \partial y } \left[ (\nu+\nu_{t}) \frac{ \partial \bar{u} }{ \partial y } \right]

\bar{u}\frac{ \partial \bar{T} }{ \partial x } +\bar{v}\frac{ \partial \bar{T} }{ \partial y } = \frac{ \partial }{ \partial y } \left[ (\alpha+\alpha_{t})\frac{ \partial \bar{T} }{ \partial y } \right]

Thus, we have \bar{u},\bar{v},\bar{T},\nu_{t},\alpha_{t} (5 unknowns) and 3 equations (above). So we need 2 more equations - Closure problem

Note

\nu_{t},\alpha_{t} are properties of the flow

Prandtl Mixing Length Theory

\nu_{t}=\kappa^{2}y^{2}\left| \frac{ \partial \bar{u} }{ \partial y } \right|

where \kappa is the von Kármán constant (approximately equal to 0.4)

Universal Turbulent Velocity Profile

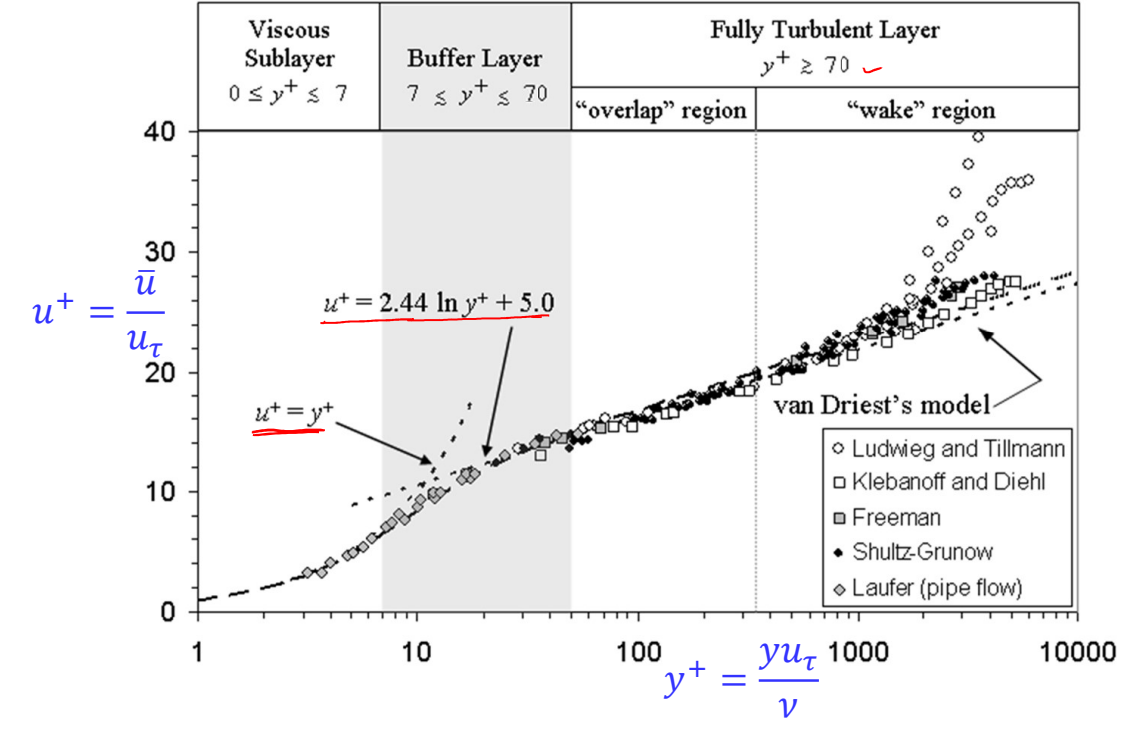

Figure 1: Universal Turbulent Velocity Profile

u_{\tau}=\sqrt{ \frac{\tau_{w}}{\rho} }

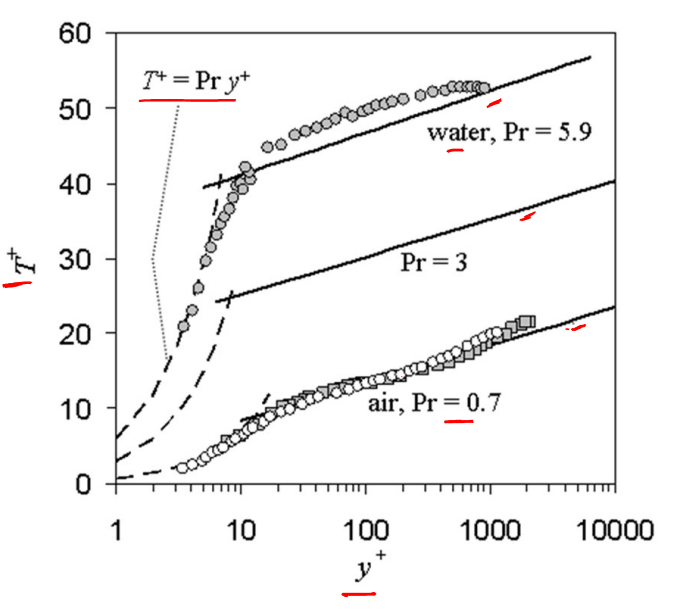

Universal Turbulent Temperature Profile

Universal Turbulent Temperature Profile

Universal Turbulent Temperature Profile

For Pr\geq 0.7 and Pr_{t} \approx 0.9 \text{ or } 1

T^{+}= (T_{w}-\bar{T}) \frac{\rho c_{p}u_{\tau}}{q_{w}''}

Integral Solution & Colburn Analogy

Momentum Integral Equation

\frac{d}{dx} \int_{0}^{\delta(x)} \frac{\bar{u}}{U_{\infty}}\left( 1-\frac{\bar{u}}{U_{\infty}} \right) dy = \frac{C_{f}}{2} = \frac{\tau_{w}}{\rho U_{\infty}^{2}}

The above equation when solved together with u^{+}=f_{u}(y^{+}) at y=\delta gives \delta,C_{f}.

f_{u} is the profile taken from universal turbulent velocity profiles near the walls.

Colburn Analogy

St_{x}Pr^{2/3} =\frac{C_{f,x}}{2}

where St_{x}=\frac{Nu_{x}}{Re_{x}Pr} is the local Stanton number and C_{f,x} is obtained by solving the momentum integral equation.

See Section 1.1 for an example

Problems

Integral Solution for turbulent boundary layer over flat plate

Derive the skin friction coefficient formula recommended by Prandtl’s one-seventh power law velocity profile (obtain correlation from the data shown in the slides). Note that in this case, \frac{u}{U_{\infty}}=\left( \frac{y}{\delta} \right)^{1/7} . Derive the expression for skin friction coefficient.

Solution

Nusselt number correlation with transition point

Consider the heat transfer in boundary layer flow from an isothermal wall T_{0} to a constant temperature stream (U_{\infty},T_{\infty}). The leading laminar section of the boundary layer has a length comparable with the length of the trailing turbulent section; consequently, the heat flux averaged over the entire wall length L is influenced by both sections. Derive a formula for the L-averaged Nusselt number, assuming that the laminar–turbulent transition is located at a point x (between x=0 and x=L) where \frac{xU_{\infty}}{\nu}=3.5\times 10^{5}

Solution

Boundary Layer Thickness - Turbulent Flow

Water flows with the velocity U_{\infty}=0.2 m / s parallel to a plane wall. The following calculations refer to the position x=6 m measured downstream from the leading edge. The water properties can be evaluated at 200C.

  1. A probe is to be inserted in the viscous sublayer to the position represented by y^{+}=2.7.Calculate the actual spacing y (mm) between the probe and the wall.

  2. Calculate the boundary layer thickness δ, assuming that the length x is covered by turbulent boundary layer flow.

  3. Calculate the heat transfer coefficient averaged over the length x. (Use the solution from Section 1.1)

Solution

Heat Transfer Coefficient - Colburn Analogy

Compare heat-transfer coefficients for water flowing at an average temperature of 40°C and at a velocity of 0.5 m/s in a 2.54 cm diameter duct using Colburn analogy. (The friction factor is given by f=0.079 Re^{-1/4})

Solution

Ice Berg Drift

A flat sheet (tabular) iceberg drifts over the ocean as it is driven by the wind that blows over the top. The temperature of the surrounding seawater is 100C, and the relative velocity between it and the iceberg is 10cm/s. The length of the iceberg in the direction of drift is L=100m. Calculate the corresponding wind velocity when the atmospheric air temperature is 400C. (Make suitable assumptions to simplify the problem and state them).

Solution

Pumping Power - Laminar vs Turbulent

Consider the flow of a fluid through a tube of fixed diameter D and length L. The mass flow rate \dot{m} is also fixed. The only change that may occur is the switch from laminar to turbulent flow because the Reynolds number Re_{D} happens to be in the vicinity of 2000. In either regime, the flow is fully developed. Calculate the change in the pumping power required as the laminar flow is replaced by turbulent flow.

Solution
